规格
| 传感器特性 | |
|---|---|
| 名称 | Sony IMX530 CMOS (Pregius-S, BSI) |
| 快门 | Global |
| 靶面尺寸 | 19.3mm (Type 1.2″) |
| 分辨率 | 5320 x 4600 px, 24.5 MP |
| 像元尺寸 | 2.74 µm (H) x 2.74 µm (V) |
| 帧率 | 90.0 FPS (90.0 FPS) @ 24.5 MP (8 Bit ADC mode)1 90.0 FPS (90.0 FPS) @ 24.5 MP (10 Bit ADC mode) 74.3 FPS (74.3 FPS) @ 24.5 MP (12 Bit ADC mode) |
| 物理特性 | |
|---|---|
| 尺寸 | 55 x 55 x 95.5 mm |

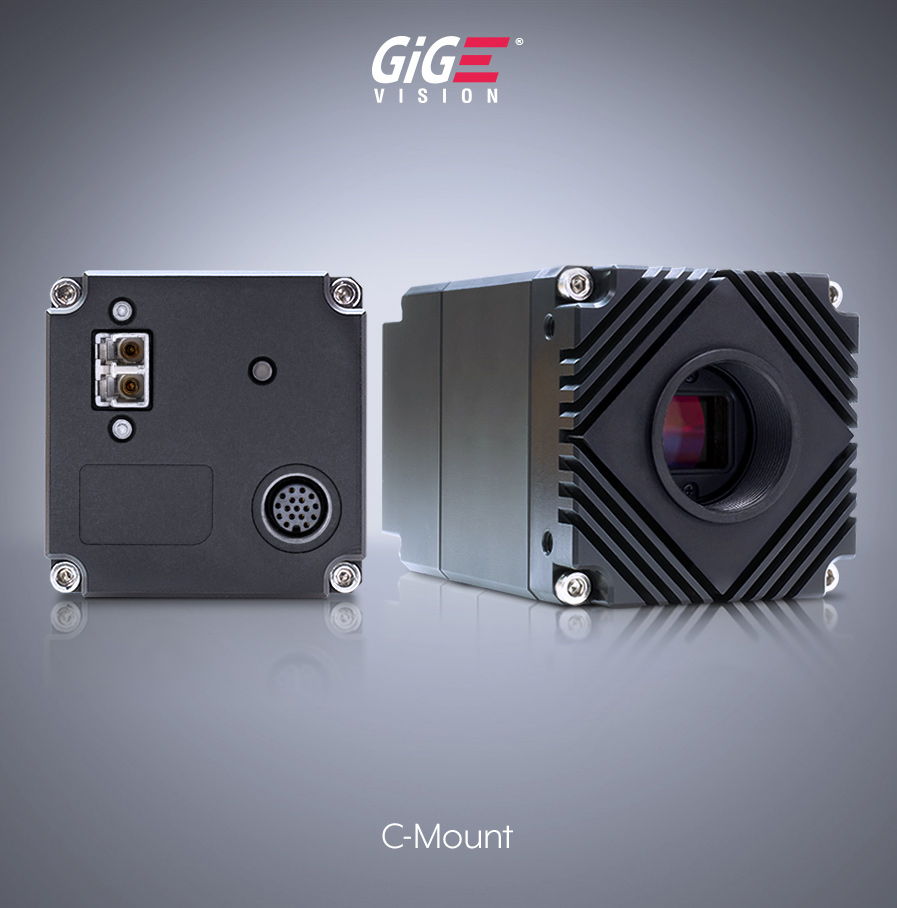

| 镜头接口 | C-Mount |
| 重量 | 325 g |
| 接口和电源信息 | |
|---|---|
| 数据接口 | 25GBASE-SR LC Duplex MM Fiber Connector (OM4, 850nm) |
| Transport Layer Protocol | UDP (GigE Vision), RDMA (GigE Vision 3.0, RoCE v2) |
| GPIO Interface | 17 pin M12 connector |
| 路光耦隔离I/O | 1 input, 3 output |
| 路双向可配置非隔离I/O | 2 bi-directional or 2 TTL/DI |
| Differential / Single-input Ports | 3 RS-422/HTL/TTL (1 selectable as DI) |
| 功率要求 | 12-24 VDC GPIO |
| 功耗 | 15 W Typical |
*对于 UDP 数据传输：最大帧率基于预留 10% 的设备链路带宽用于数据包重传计算。括号 () 中标注的帧率表示 0% 预留条件下的数值。RDMA 无需预留带宽，因为数据包重传由 RDMA 协议内部处理。
1在 8-bit ADC 模式下运行传感器会导致噪声增加约 4 倍。
1在 8-bit ADC 模式下运行传感器会导致噪声增加约 4 倍。
| 成像特性 | |
|---|---|
| 图像缓存 | 880 MB |
| Image Processing | Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion |
| 数据格式 | Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411 |
| Image Modes | Horizontal and vertical binning, decimation, ROI, horizontal and vertical flip |
| ADC | 8, 10, 12 bit |
| 增益范围 | 0 dB to 48 dB analog and digital Dual ADC Mode (low-gain, high-gain) |
| 曝光时间 | 6.97 μs to 10 s (Normal) / 2.296 μs to 2.464 μs (Short Mode) |
| 相机功能 | |
|---|---|
| User Sets | 1 default and 2 custom user set |
| File System Size | 16 MB |
| Chunk Data | Image, CRC, histogram stats, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time |
| Event Data | Exposure start/end |
| Counter & Timer | 2 counters and 2 timers |
| Sequencer | Exposure time, gain |
| Synchronization | Software trigger, hardware trigger, PTP (IEEE 1588) |
| 标准和认证 | |
|---|---|
| 兼容 | GigE Vision 3.0 |
| 认证 | CE, FCC, RoHS, REACH, WEEE |
| 存储温度 | -30 to 60°C |
| 工作温度 | -20 to 50°C ambient |
| 湿度 | Operating: 20% ~ 80%, relative, non-condensing |
| 冲击和振动标准 | DIN EN 60068-2-27, DIN EN 60068-2-64 |
| 保修 | 3 year |
